Mains powered M650 from Gallagher with 7yr warranty & high 4.5 Joule output

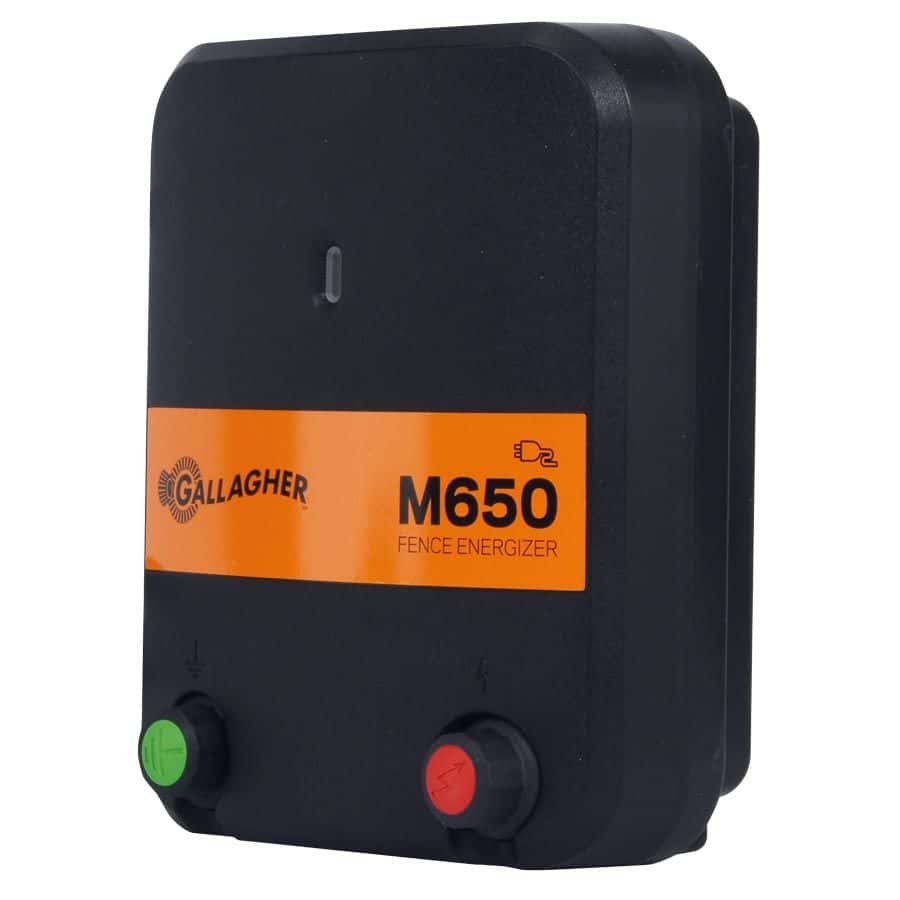

Gallagher M650

SKU U01-122 Categories ,

£274.99 Excl. VAT: £229.16

  • Stored energy – 6.5 Joules
  • Output energy – 4.5 Joules
  • Fence voltage max – 9,200v
  • Fence voltage at 500ohms – 7,100v
  • Suitable for fences up to 40km
  • 7-year warranty (when registered)
Add to wishlist
Add to compare

Description

The Gallagher M650 Mains Energiser is designed for long fence runs and larger livestock setups, where you need enough power to carry a pulse over distance and through some load on the line. It’s best suited to sheep and cattle farms, particularly where fencing is spread across multiple fields or boundary runs.

With 4.5 joules of output energy, it will handle multi-wire fences up to around25km in good conditions, and still perform where there’s some vegetation or pressure on the fence. This makes it a good fit for longer boundary fencing, bigger grazing areas or setups where smaller energisers start to fall short.

It is powerful enough to run a number of electric nets, and manufacturers will often list it as suitable for that use. However, in practice, we don’t generally recommend pairing higher output energisers like this with netting. Because nets sit close to the ground, you tend to get more frequent arcing, and with a unit of this size that can be quite harsh over time. This can lead to premature wear or damage to the netting, so for long-term use, a slightly smaller energiser is usually the better option.

Installation is standard for a mains unit. It needs to be mounted indoors or in a dry location, with lead-out cable going to both the fence and the earth system. As with all higher output energisers, earthing is critical. We’d recommend at least 3 proper earth stakes (1m or longer), and more if you’re on dry or sandy ground. Without a good earth, you won’t get the benefit of the extra power.

The unit itself is simple — LED indicator to show it’s running, built-in lightning protection, and a solid housing that will stand up to everyday use. It’s not part of the i-Series, so you’re not getting monitoring features or remote control — just a straightforward energiser that does the job.

If you’re covering a fair amount of ground with sheep or cattle and need a unit that will keep the fence working properly over distance, this is where this model fits.

7-year warranty when registered with Gallagher.

Specification

  • 3yrs warranty as standard but upgraded to 7yrs when registering with Gallagher within 3 months of the purchase date
  • Stored energy – 6.5 Joules
  • Output energy – 4.5 Joules
  • Fence voltage max – 9,200v
  • Fence voltage at 500ohms – 7,100v
  • Distance – 33km
  • Current consumption – 8w

When This Is Not The Right Choice For You

If you’re only fencing smaller areas, paddocks or short runs, this is more power than you need and a smaller unit will usually do the job just as well.

It’s also not suitable for portable fencing setups, as it needs to be installed in a fixed location.

While this unit is powerful enough to run electric netting, we don’t recommend using it for that purpose long term. Because nets sit close to the ground, you tend to get more frequent arcing, and with an energiser of this size that can be quite harsh. Over time, this can lead to damage or premature wear of the netting.

For horse paddocks, this level of output is generally unnecessary unless you’re dealing with very large areas or particularly challenging fencing conditions.

Points To Consider...

Points to Consider When Using Higher Output Energisers

Higher output energisers like this are designed for longer fence runs and heavier loads, but that extra power needs to be matched to the setup.

Match the energiser to the fence length

On shorter fence runs, a very powerful energiser can be harder on the system than expected. The pulse has nowhere to go, which can lead to increased arcing at weak points.

This can cause:

  • Premature wear on insulators
  • Damage to conducting lines
  • General inefficiency in the fence

As a rule, it’s better to choose an energiser suited to the length of fence you’re running, rather than simply going for the biggest unit available.

Use the correct insulators

Not all insulators are built for higher output machines.

Standard or lighter-duty insulators can:

  • Arc more easily
  • Break down over time under higher voltage

For these energisers, it’s important to use good quality, heavy-duty insulators with proper spacing from the post, especially on corners, strain points and gateways.

Be careful with rope, tape and plastic conductors

Poly products (rope, tape and some twines) contain plastic, which makes them more vulnerable to damage from arcing.

They can still be used, but:

  • They should be paired with high-spec insulators
  • Avoid setups where the conductor is close to posts or likely to arc
  • Keep vegetation well managed to reduce leakage and arcing

Over time, repeated arcing can burn or weaken the material, shortening its lifespan.

Netting and high-output energisers

While these energisers are powerful enough to run electric netting, they are not ideal for it.

Because netting sits close to the ground, it creates more frequent arcing. With higher output units, this can be quite harsh and may lead to premature wear or damage to the netting.

Earthing becomes more important as power increases

The larger the energiser, the more important the earth system becomes.

Without a proper earth:

  • You won’t get the full output
  • The fence won’t perform as expected

For higher output units, this usually means multiple earth stakes installed properly in suitable ground.
